PDF Accessibility testing using GrackleDocs Grackle Go

By: Steve Wilkinson
Posted:
Tagged with:

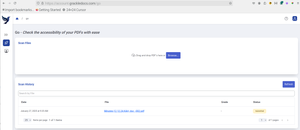

I logged into GrackleDocs Grackle GO (external website) and went to the dashboard

Grackle Go dashboard

I then uploaded the PDFs I wished to test

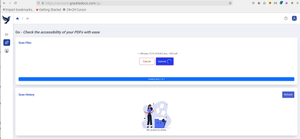

Uploading PDF to Grackle Go

The file was uploaded

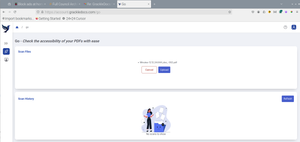

File uploaded into Grackle Go

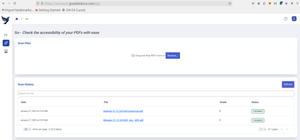

I then uploaded the second file to be tested

Second file uploaded

First document

The details of the file are shown at the top of the report

Scan results details

Then the report gives the grade of the report, alongside the number of passed, warned, and failed.

Grade B means that the document requires review, but passes most of the requirements, typically reports minimal errors, and may contain several cautions

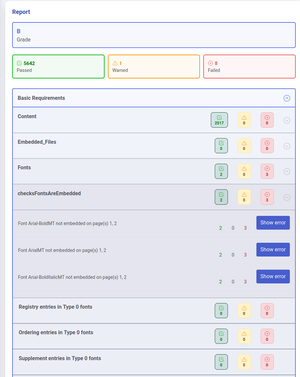

B grade with 5642 passed, 1 warned and 8 failed. 3 errors with font not embedded

There are 2 pages in which the fonts are not embedded causing 3 failures for each font

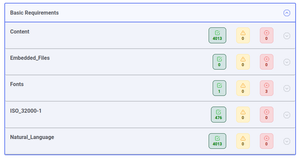

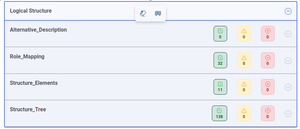

No warnings or failures on the ISO and Natural Language sections.

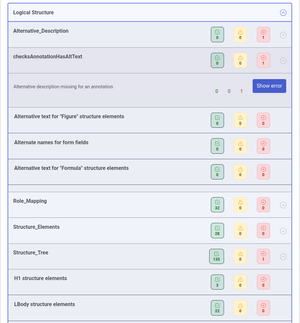

Error - alternative description missing for an annotation

There is an annotation that is missing an alternative description.

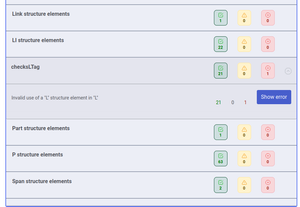

Error - invalid use of a "L" structure element in "L"

There is an invalid use of an “L” structure element in “L”. This issue occurs when list structure in a PDF does not meet the expected hierarchy because the list items are not nested correctly.

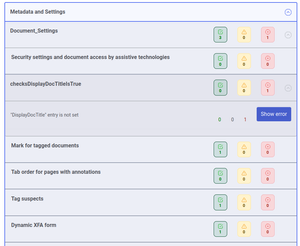

Error - "DisplayDocTitle" entry is not set

The “DisplayDocTitle” entry is not set (to true) so that the document title is not displayed in the top bar and the filename is shown – it should be the document title on display.

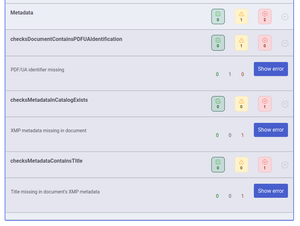

Errors - PDF/UA identifier missing, XMP metadata missing in document, and title missing in document's XMP metadata

The PDF/UA identifier is missing, which means that the PDF does not have the required metadata tag showing that it complies with the PDF/UA (Portable Document Format for Universal Accessibility) standard – this should not be set unless the document passes all the tested criteria.

The XMP metadata missing in document, means that the overall language needs to be set for document.

The Title missing in document’s XMP metadata, means that a meaningful title has not been entered in the Title field of the document.

Second document

The details of the file are shown at the top of the report

Scan results details

Then the report gives the grade of the report, alongside the number of passed, warned, and failed

B grade, 8687 passed, 1 warned, and 6 failed

Grade B means that the document requires review, but passes most of the requirements, typically reports minimal errors, and may contain several cautions.

No warnings and 3 errors in the fonts

No warnings and no errors

No warnings and 1 error in document settings, and 1 warning and 2 errors in metadata

The issues are as follows

No warnings and 9 errors of fonts not embedded in pages

There is 1 page in which the fonts are not embedded causing 3 failures for each font.

Error - "DisplayDocTitle" entry is not set

The “DisplayDocTitle” entry is not set (to true) so that the document title is not displayed in the top bar and the filename is shown – it should be the document title on display.

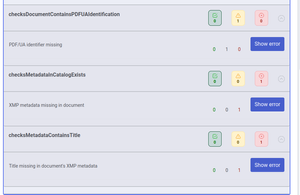

1 warning, PDF/US identifier missing, 1 error XMP metadata missing in document, and 1 error Title missing in document's XMP metadata

The PDF/UA identifier is missing, which means that the PDF does not have the required metadata tag showing that it complies with the PDF/UA (Portable Document Format for Universal Accessibility) standard – this should not be set unless the document passes all the tested criteria.

The XMP metadata missing in document, means that the overall language needs to be set for document.

The Title missing in document’s XMP metadata, means that a meaningful title has not been entered in the Title field of the document.
